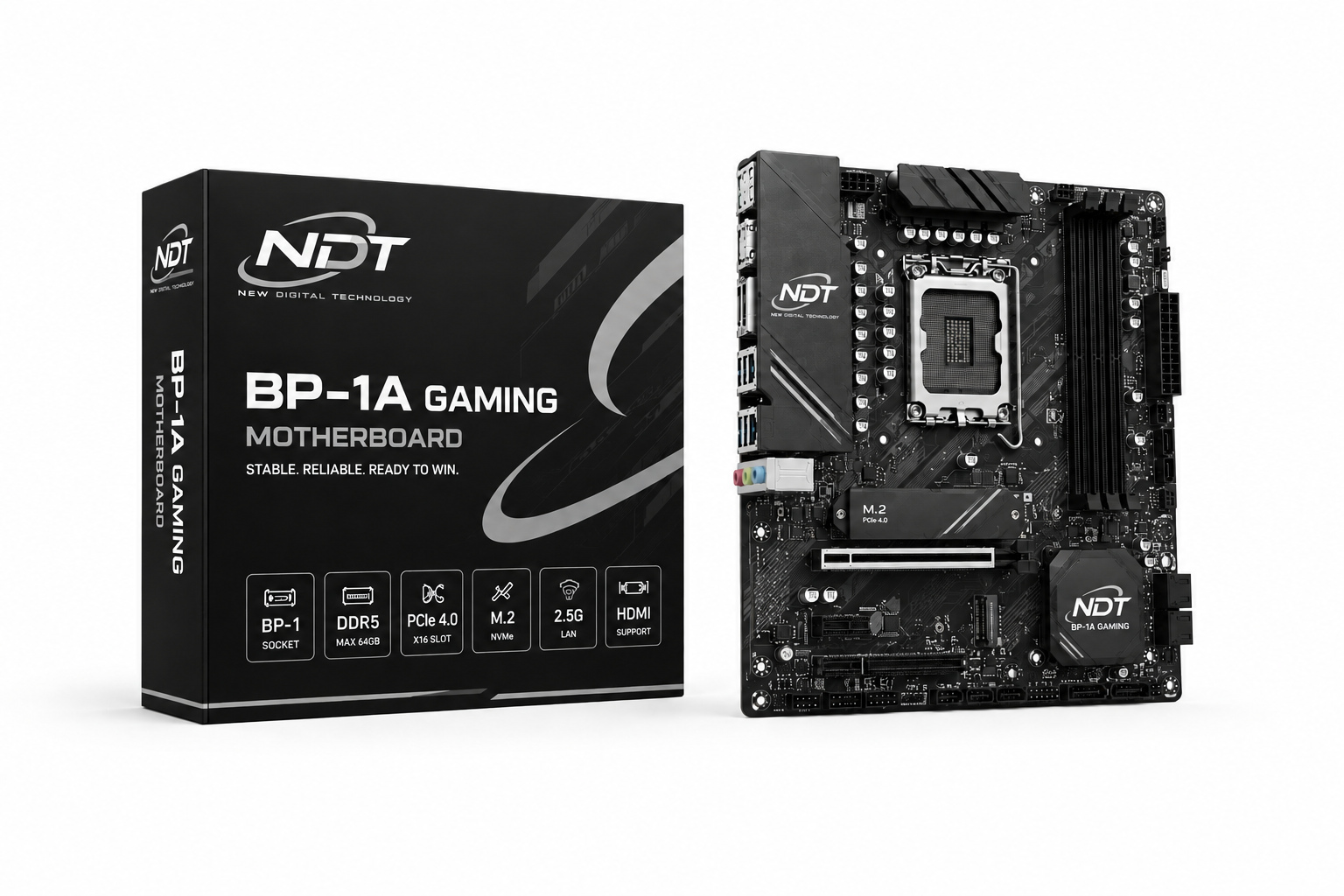

NDT BP-1A Gaming motherboard

Description

NDT BP-1A Gaming is an affordable gaming motherboard designed for modern gaming PCs, everyday computing, content creation, and system upgrades.

Built around the BP-1 socket, the motherboard supports the Bright Pulsar / NDT GEN processor platform and provides a solid foundation for entry-level and mainstream gaming systems.

The board supports DDR5 memory up to 64 GB, PCIe 4.0 graphics, high-speed M.2 NVMe storage, and 2.5 Gigabit Ethernet. Its Micro-ATX form factor makes it suitable for both compact and standard gaming PC builds.

Key features:

• BP-1 CPU socket
• DDR5 memory support
• Up to 64 GB RAM
• PCIe 4.0 x16
• M.2 NVMe PCIe 4.0 storage
• 2.5 Gigabit LAN
• HDMI display output
• USB 3.2 Gen 1
• 7.1-channel HD Audio
• UEFI BIOS
• Micro-ATX form factor
• Enhanced power delivery
• High-quality capacitors

Motherboard specifications

• Model: NDT BP-1A Gaming
• Socket: BP-1
• Chipset: NDT BP-1A
• Form Factor: Micro-ATX
• Dimensions: 244 × 244 mm
• Memory: 2 × DDR5 DIMM
• Maximum Memory: 64 GB
• Memory Support: DDR5-4800 / 5200 / 5600 (OC)
• Expansion Slots: 1 × PCIe 4.0 x16, 1 × PCIe 3.0 x1
• Storage: 1 × M.2 NVMe PCIe 4.0 ×4
• SATA: 4 × SATA 6 Gb/s
• Network: 2.5 Gigabit Ethernet
• Video Output: HDMI
• USB: USB 3.2 Gen 1 / USB 2.0
• Audio: 7.1-channel HD Audio
• BIOS: UEFI BIOS

Product dimensions

24.4 × 24.4 × 3.5 cm

Product weight

0.72 kg

Package dimensions

• Length: 30 cm
• Width: 25 cm
• Height: 7 cm

Package weight

1.15 kg

What’s in the box

• NDT BP-1A Gaming Motherboard
• I/O Shield
• SATA cables ×2
• Quick Start Guide
• Mounting screws
• Protective packaging
