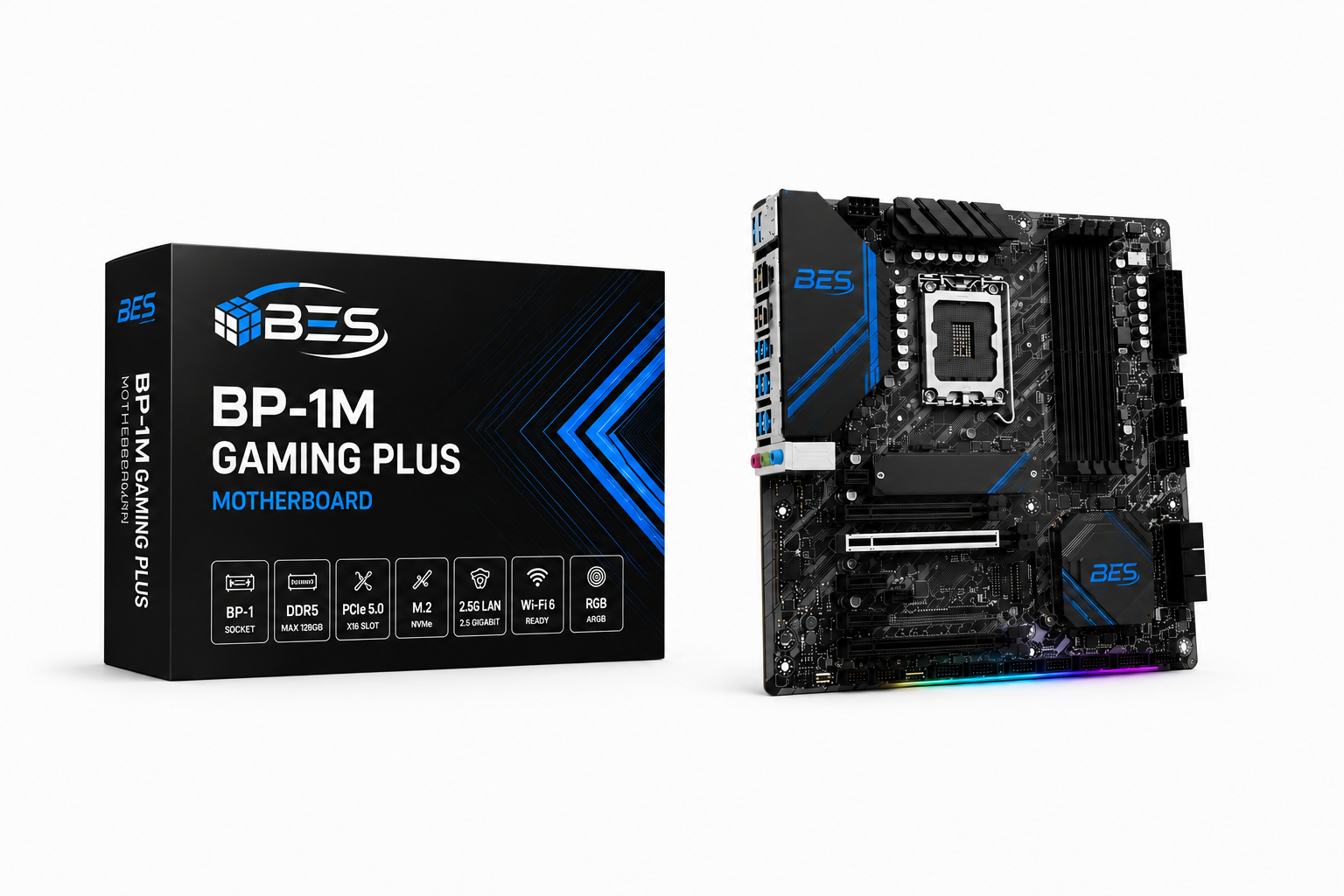

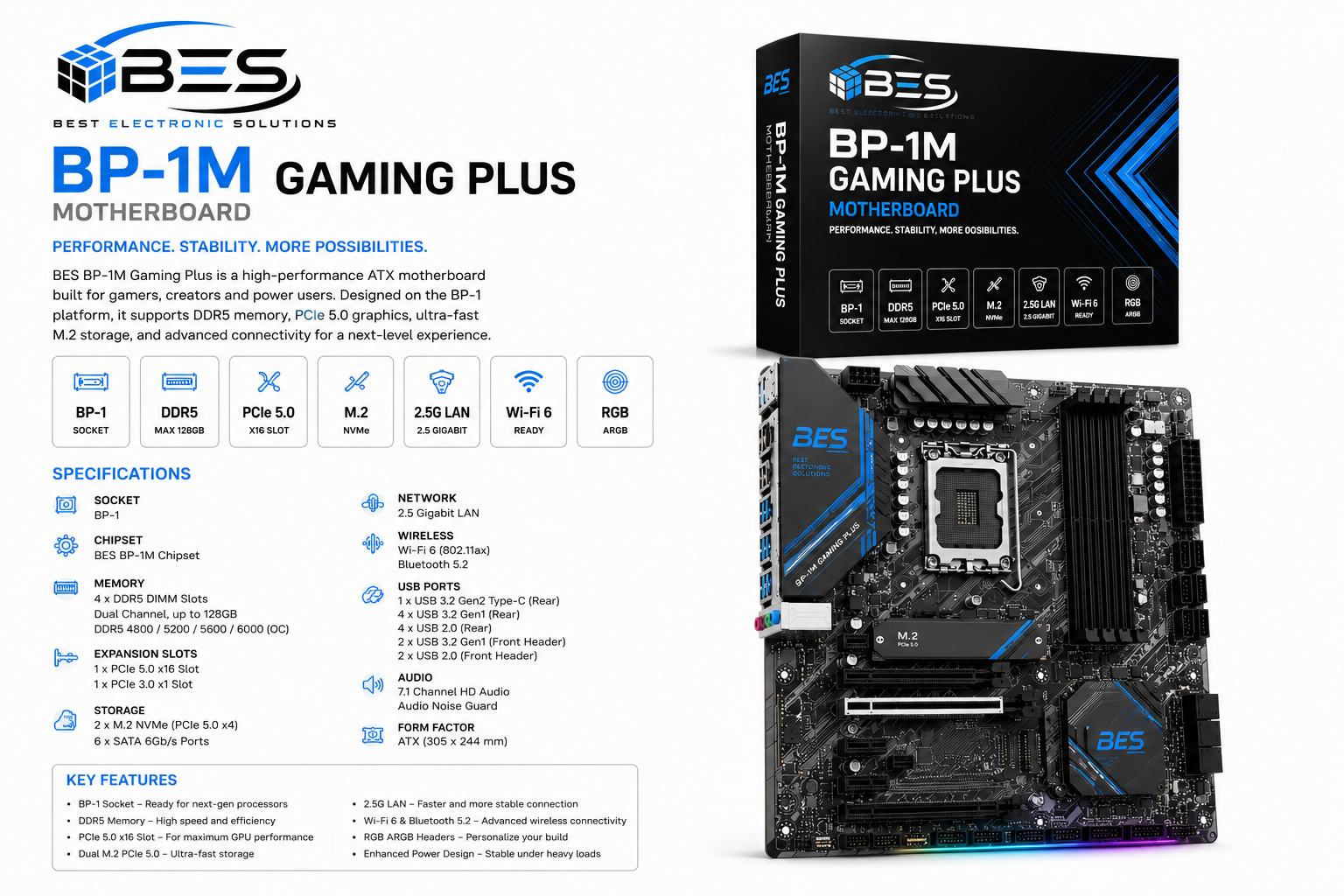

Motherboard BES BP-1M Gaming Plus

Description

BES BP-1M Gaming Plus is a high-performance ATX motherboard designed for modern gaming PCs, content creation, and demanding enthusiast systems.

Built on the BP-1 platform, it supports the Bright Pulsar / NDT processor ecosystem and provides a strong foundation for high-performance systems. With DDR5 memory support up to 128 GB, PCIe 5.0 graphics connectivity and dual M.2 NVMe slots, the BP-1M Gaming Plus is designed for fast gaming and responsive everyday performance.

The motherboard features a robust power delivery system, large VRM heatsinks, 2.5 Gigabit Ethernet, Wi-Fi 6, Bluetooth 5.2 and extensive USB connectivity. RGB/ARGB headers allow users to customize the appearance of their gaming build.

Key features

• BP-1 CPU socket
• BES BP-1M chipset
• 4 × DDR5 DIMM slots
• Up to 128 GB RAM
• PCIe 5.0 x16
• 2 × M.2 NVMe
• 6 × SATA 6 Gb/s
• 2.5 Gigabit Ethernet
• Wi-Fi 6
• Bluetooth 5.2
• USB 3.2 Gen 2 Type-C
• USB 3.2 Gen 1
• 7.1-channel HD Audio
• RGB / ARGB headers
• Enhanced power delivery
• ATX form factor

Motherboard specifications

• Model: BES BP-1M Gaming Plus
• Socket: BP-1
• Chipset: BES BP-1M
• Form Factor: ATX
• Dimensions: 305 × 244 mm
• Memory: 4 × DDR5 DIMM
• Maximum Memory: 128 GB
• Memory Support: DDR5-4800 / 5200 / 5600 / 6000 (OC)
• Expansion Slots: 1 × PCIe 5.0 x16, 1 × PCIe 3.0 x1
• Storage: 2 × M.2 NVMe PCIe 5.0 x4
• SATA: 6 × SATA 6 Gb/s
• Network: 2.5 Gigabit Ethernet
• Wireless: Wi-Fi 6 (802.11ax)
• Bluetooth: 5.2
• Video Output: HDMI
• USB: USB 3.2 Gen 2 Type-C / USB 3.2 Gen 1 / USB 2.0
• Audio: 7.1-channel HD Audio
• RGB: RGB / ARGB headers
• BIOS: UEFI BIOS

Product dimensions

30.5 × 24.4 × 3.5 cm

Product weight

1.05 kg

Package dimensions

• Length: 35 cm
• Width: 27 cm
• Height: 7 cm

Package weight

1.55 kg

What’s in the box

• BES BP-1M Gaming Plus Motherboard
• I/O Shield
• SATA cables ×2
• Wi-Fi antennas
• Quick Start Guide
• M.2 mounting screws
• RGB/ARGB extension cable
• Protective packaging
